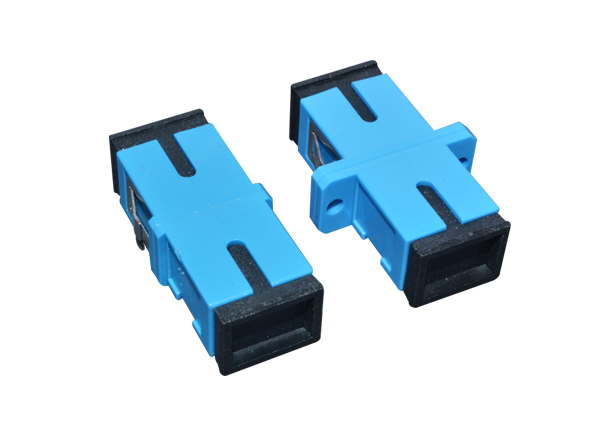

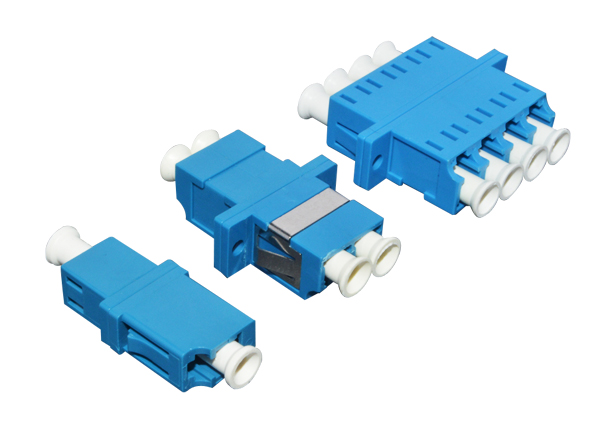

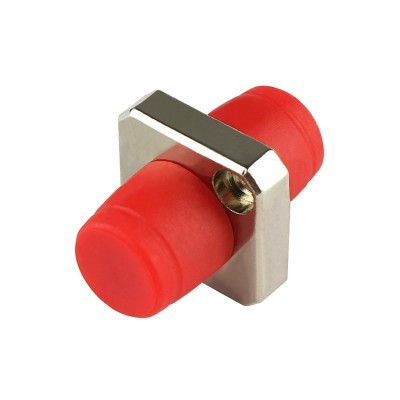

Fiber optic adapter is a mechanical device designed to align fiber-optic connectors. It contains the interconnect sleeve, that holds the two ferrules together.There are SC,LC,FC,ST,MU,E2000,Hybrid..various type for your choice.
Application:
- Fiber Optical TransmitterSystem
- Testing/Measurement Equipment
- CATV Network
- Distribution Frame, Fiber Optical Wall-mount&Rack-mount Cabinets
- LAN System
| Item | Parameter |
| Type | FC , SC , ST , MU , SMA , E2000 , Hybrid |
| Endface | PC;APC |
| Fiber mode | SM;MM |
| Sleeve | Zirconia Ceramic ; Phosphor Bronze |
| Insertion Loss(db) | ≤0.2 |
| Exchangeaility(db) | ≤0.2 |
| Tensile Strength | ≤ 0.2 ( 0 ~ 100N ) |
| Mating Durability (500 Cycles)(dB) | ≤0.2 |
| Operating Temperature(℃) | -40～+80 |
| Storage Temperature(℃) | -40～+80 |
