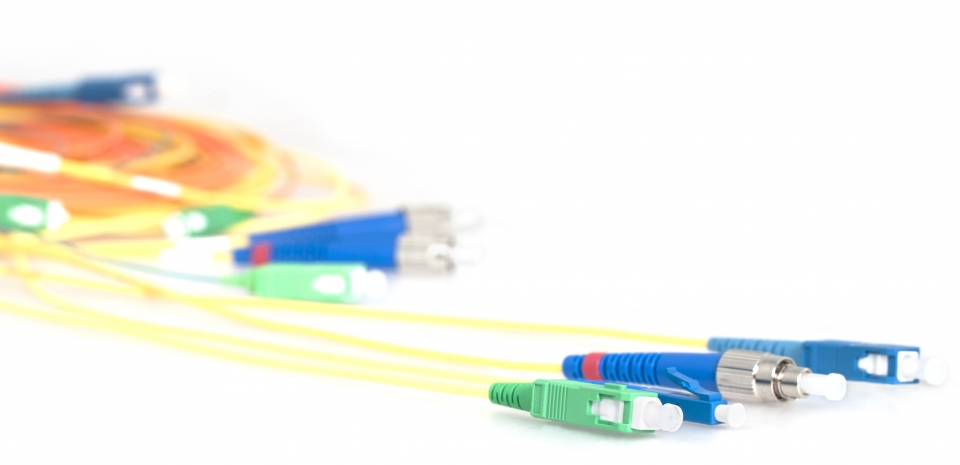

High Performance Fiber Optic Patchcord

  • Application
  • Telecommunication System
  • Testing Equipment
  • CATV/LAN System
  • Long-haul telecommunication
  • Features
  • Endface for UPC and APC is available
  • Singlemode/Multimode and Simplex/Duplex(4/8/12/16/24/48 ..etc) is available
  • Cable diameter with 0.9mm/1.6mm/1.8mm/2.0mm/3.0…is available
  • Cable sheath with PVC,LSZH,Hytrel..is available
  • High Return loss and low Insertion loss
  • Compliant with IEC-61754,Telcordia-GR326-CORE,RoHS
  • 100% Optical performance inspection

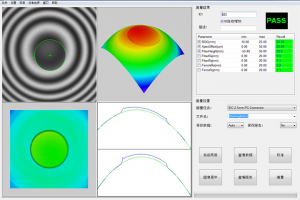

Geometric Parameters

UPC APC
Return Loss(db) SM ≥50 ≥60
MM / /
Radius of Curvature(mm) SC 10~25 5~12
LC 7~25 5~12
Apex offset(um) 0~50
Fiber Height(Spherical)(nm) ±100
Angular Deviation / 8°±0.5°
Eccentricity(Fiber core to ferrule) ≤0.5um
  • Specification
Fiber Mode SM MM
Connector Type SC,LC,FC,ST
Diameter(mm) Φ0.9,Φ2.0,Φ3.0
Endface PC UPC APC PC UPC APC
Insertion Loss(db) ≤0.20 ≤0.30 ≤0.30 /
Return Loss(db) ≥ 45 ≥ 50 ≥ 60 ≥35 /
Exchangeability(dB) ≤0.20
Repeatability(dB) ≤0.10
Operating Temperature(℃) -40~+75
Storage Temperature(℃) -40~+85
Operating Wavelength(nm) 1310, 1550
